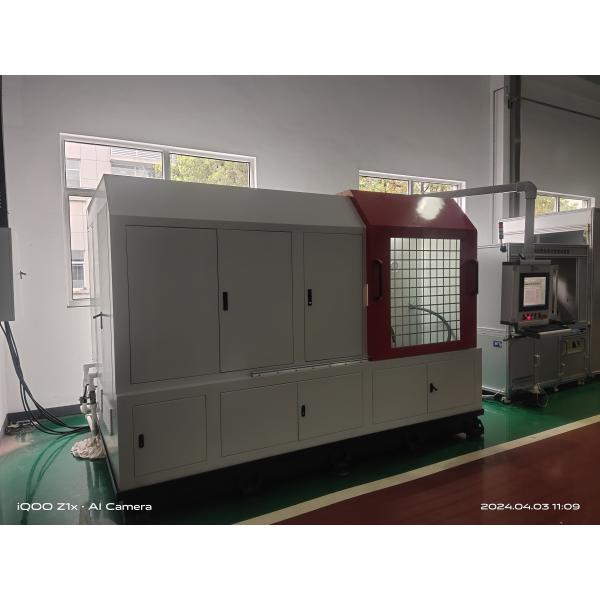

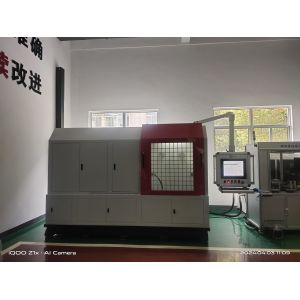

Lifting And Transportation Machinery Hydraulic Pump Test Bench With
Data Detection For Testing Hydraulic Motor
Description:
The pump motor test bench is mainly used for performance testing of
open pumps, closed pumps, and motors (as closed pump tests). As an
open platform, the system adopts modular design, and obtains the
basic data analysis and support of fluid, power and electrical
control systems through the combination of mechanical, electronic,
control and computer, so as to promote the rapid improvement of
efficiency and quality, so as to promote the scientific and
technological progress of enterprises and the improvement of market
competitiveness.
The hydraulic testing system designed by us has the following
characteristics:
★ The test system has high reliability under extreme working
conditions such as high speed and high pressure, and has a wide
range of test functions.
★ We have rich experience in pump motor testing, and can assist
users to complete the test process and judgment preparation,
matching system parameters and tooling design;
★ The design of the test system is beautiful in appearance, the
atmospheric design is in line with ergonomics, the operation is
comfortable, and the safety is good;
★ The manufacturing technology of the test bench is advanced, and
the test bench is processed as a whole to fully ensure the
concentricity and verticality of the connection and installation
mechanism;
★ The operation interface of the test system is graphically
designed for easy operation. The operation interface is embedded in
the hydraulic circuit diagram, and the status parameters in the
circuit are displayed in real time, and the operation status can be
monitored;
★ The measurement and control software has a high degree of
intelligence, which supports the testers to do secondary
development on the existing software architecture;
★ The test system has strong comprehensive scalability, and the
corresponding interface is fully considered in the design of the
hydraulic and control system, which is convenient for later
upgrading.
★ Proportional valves, flow sensors, high-pressure valve groups,
high-pressure filters and other key components adopt imported
first-class brands, with high performance and high reliability, and
fully ensure the test accuracy, response and stability;
★ The test system has its own fault diagnosis function, and the
system is stable and safe. It can automatically generate test
reports, print test curves, and automatically store test data for
future analysis and management.
Technical Parameter:
| No | Name | Technical Indicators | Remark
|
| 1 | Fuel tank volume | 1000L |
|
| 2 | Main drive system | The main motor is 160KW, the standard speed is 1500rpm, and the
maximum speed ≥ 3000rpm; THE TORQUE SENSING RANGE IS 2000NM | The main motor adopts servo motor |
| 3 | Main loading system | Two bridge loading circuits, which can test open/closed (motor)
pumps, with a maximum adjustment pressure of 42Mpa. | Proportional loading with cooling in the circuit. |
| 4 | Oil replenishment and control oil motor pump unit | The refill oil flow rate is 105L/min
Make-up oil pressure 3.5Mpa (adjustable, depending on make-up
relief valve) | Motor power 11KW |
| 5 | Pilot hydraulic/electronic control system | Hydraulic control: 2 channels 0-50Bar, proportional adjustment;
Each channel is divided into two through the solenoid valve, and
can be connected to four control ports;
100 bar pressure from the mouth all the way
Electrical proportional control 2 channels,
2 24V/12V switches;
The pump swing angle sensor interface is equipped with 1 channel | The proportional signal is up to 2500mA, and the flutter frequency
is adjustable. |
| 6 | Flow test range | Main circuit 15-600L/min 2 channels | |
| 7 | Recovery pump sets | The flow rate is 26L/min |
Low-noise progressive cavity pumps |
| 8 | Temperature | Water cooling and heat dissipation | The user provides a circulating cooling water source |
| 9 | Control & Collection | PLC control, computer acquisition | Auto-loading, computer-aided testing.
|
| 10 | Working medium | 46# anti-wear hydraulic oil | |
| 11 | Filtration capacity | Not lower than NAS8 (ISO17/14) | |
Pump test items
| No. | Testing project | Remark |
| 1 | Displacement test | The test curve is displayed |
| 2 | Volumetric efficiency test | The test curve is displayed |
| 3 | Total efficiency test | Displays the curves |
| 4 | Variable characterization test | The test curve is displayed |
| 5 | Pump control valve setting | Manual setting |
Description of the main sensor configuration of the test system:
| No | Parameter | Position/Function | Measuring range and accuracy | Remark |
| 1 | Primary loop traffic | | Measuring range 15-600L/min, measurement accuracy: ±0.5%, | 2 sets of Hydrotechnik turbine flowmeters |
| 2 | Main pressure | AB port | 600 bar with 0.25% accuracy | 5 sets of pressure sensors |
| 3 | Oil pressure control | Pilot pump P port |
250 bar, with 0.25% accuracy | |
| 4 | Pilot and make-up oil pressure | | 100 bar, with 0.25% accuracy | |
| 5 | Torque sensor | | 2000NM, ±0.2% accuracy | |
| 6 | Temperature | | 150℃, with 0.5% accuracy | |
| 7 | Electrically controlled | PLC control system | | Siemens |
| 8 | Electrically controlled | Industrial control acquisition system | | Nuojiada all-in-one machine |
Why choose us?
Changzhou Dazhuo Testing Equipment Co., Ltd has a number of system
design, structural design, software design engineers, in the design
and development, manufacturing, installation and commissioning of
hydraulic test systems and sales services have a strong
comprehensive strength. In recent years, the core team has
successively supported Caterpillar, Italy OMFB, Bosch Rexroth
(Lozon), SMS (SMS), Japan Shimadzu, Zhejiang Haihong, Shanghai
Qiangtian and other well-known domestic and foreign host and
hydraulic manufacturers, and has accumulated rich experience.
If you need to know more about the specific solution, or have any
technical questions you would like to discuss with us, please feel
free to contact us.
