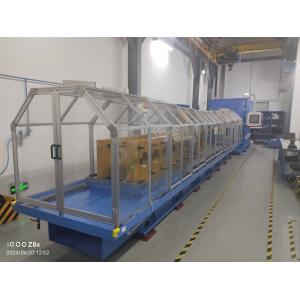

110KW 160KW Hydraulic Piston Pump Test Stand,Computerized Hydraulic
Motor Test Bench
Features
The hydraulic comprehensive test bench for production design and
manufacture has complete functions, simple operation, compact
structure, easy operation, hydraulic components for construction
equipment, and necessary testing equipment for hydraulic pump,
hydraulic motor, hydraulic valve and cylinder repair.
Technical Parameter
Total power | 75KW,90KW,110KW,132KW,160KW,315kw,350kw |
Range of test pressure | 0~42MPa |
Range of flow rate | 0~500L/min |
Range of rotational speed | 0~3000r/min |
Composition | Dynamic system, hydraulic control system, hydraulic oil filter
temperature control system and electric control system, data
acquisition test system |
| Apply to performance test of the hydraulic components that
supported by a host in engineering machinery, metallurgical,
petroleum, machinery, aerospace, shipbuilding and other fields. |
Hydraulic pump test bench, hydraulic pump maintenance test bench
for concrete equipment, hydraulic motor test bench, hydraulic valve
test bench, hydraulic cylinder test bench, hydraulic comprehensive
test bench, hydraulic component test bench,Hydraulic test bench,
hydraulic pump repair test bench.
Pump test items
| No. | Testing project | Remark |
| 1 | Displacement test | The test curve is displayed |
| 2 | Volumetric efficiency test | The test curve is displayed |
| 3 | Total efficiency test | Displays the curves |
| 4 | Variable characterization test | The test curve is displayed |
| 5 | Pump control valve setting | Manual setting |
Description of the main sensor configuration of the test system:
| No | Parameter | Position/Function | Measuring range and accuracy | Remark |
| 1 | Primary loop traffic | | Measuring range 15-600L/min, measurement accuracy: ±0.5%, | 2 sets of Hydrotechnik turbine flowmeters |
| 2 | Main pressure | AB port | 600 bar with 0.25% accuracy | 5 sets of pressure sensors |
| 3 | Oil pressure control | Pilot pump P port |
250 bar, with 0.25% accuracy | |
| 4 | Pilot and make-up oil pressure | | 100 bar, with 0.25% accuracy | |
| 5 | Torque sensor | | 2000NM, ±0.2% accuracy | |
| 6 | Temperature | | 150℃, with 0.5% accuracy | |
| 7 | Electrically controlled | PLC control system | | Siemens |
| 8 | Electrically controlled | Industrial control acquisition system | | Nuojiada all-in-one machine |
Why choose us?
Changzhou Dazhuo Testing Equipment Co., Ltd has a number of system
design, structural design, software design engineers, in the design
and development, manufacturing, installation and commissioning of
hydraulic test systems and sales services have a strong
comprehensive strength. In recent years, the core team has
successively supported Caterpillar, Italy OMFB, Bosch Rexroth
(Lozon), SMS (SMS), Japan Shimadzu, Zhejiang Haihong, Shanghai
Qiangtian and other well-known domestic and foreign host and
hydraulic manufacturers, and has accumulated rich experience.
If you need to know more about the specific solution, or have any
technical questions you would like to discuss with us, please feel
free to contact us.
Support and Services:
Hydraulic Test Benches Technical Support and Service
At our Company, we provide comprehensive technical support and
service for our Hydraulic Test Benches online. Our expert
technicians are available to answer any questions you may have and
provide remote technical support for optimal performance.
Technical Support
We offer technical support for our Hydraulic Test Benches through
our experienced customer support team online. Our team is available
to answer any questions you may have about operation. Additionally,
our team can provide guidance on optimal performance and provide
best practices for usage.
